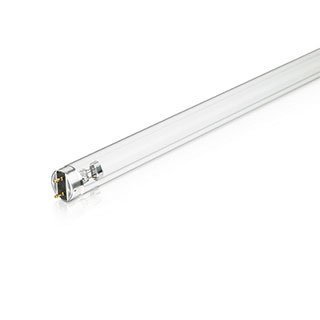

Philips TUV Lamp (30w)

R385.00 excl. VAT R442.75

T8 Bi Pin

TUV T8 lamps are double-ended UVC (germicidal) lamps used in professional water and air disinfection units.

  •  Low pressure mercury vapour discharge lamps.
  • Tubular glass envelope emitting short-wave UV radiation with a peak at 253.7nm (UV-C) for germicidal action.
  • Glass filters out the 185nm ozone – forming line.
  • PL-S have a specially adapted starter providing almost instant starting characteristics already built into the lamp base.
  • Fluorescent and mercury vapour types.
  • The inner envelope is coated with a fluorescent powder, emitting long wave UV radiation to excite luminescence.
  • The dark blue glass envelope filters out visible light so as not to intefere with the luminescence.

TUV T8 lamps are double-ended UVC (germicidal) lamps used in professional water and air disinfection units.

  •  Low pressure mercury vapour discharge lamps.
  • Tubular glass envelope emitting short-wave UV radiation with a peak at 253.7nm (UV-C) for germicidal action.
  • Glass filters out the 185nm ozone – forming line.
  • PL-S have a specially adapted starter providing almost instant starting characteristics already built into the lamp base.
  • Fluorescent and mercury vapour types.
  • The inner envelope is coated with a fluorescent powder, emitting long wave UV radiation to excite luminescence.
  • The dark blue glass envelope filters out visible light so as not to intefere with the luminescence.

TUV 30W Specs Download

T8 Specs Download

Additional information

Watts

Volts

Features & Benefits

Features Benefits
  • Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
  • Protective inside coating ensures constant UV output over the complete lifetime of the lamp
  • Protective inside coating ensures constant UV output over the complete lifetime of the lamp
  • Long and reliable lifetime with the lowest percentage of lamps that fail prematurely in the market
  • Lamp glass filters out the 185 nm ozone-forming line
  • High Output versions available for optimum UVC output per lamp length, allowing for reduction of system size
  • Warning sign on lamp indicates that the lamp radiates UVC
  • Security of effective disinfection over the useful lifetime of the lamp
  • High system efficacy. It is not required to over-design the purification system to maintain effectiveness of disinfection
  • High system efficacy. It is not required to over-design the purification system to maintain effectiveness of disinfection
  • Advanced Maintenance planning, virtually eliminating the need for expensive spot replacement of prematurely failed lamps











Application

  • Killing or inactivating bacteria, viruses and other primitive organisms.
  • Air, water and surface disinfection in hospitals, also in food processing industries such as dairies, breweries and bakeries.
  • Widely used in the disinfection of drinking water, waste water, swimming pools, cold storage rooms, etc.

Also applied in a variety of photochemical processes.

Industry uses:

  • Textile and chemical industry.
  • Mineralogy.
  • Archeology.
  • Special effects in night clubs.
  • Banking (detecting counterfeit bank notes).
  • Sign lighting.
  • Criminology.
  • Food industry.
